DS-003 Cartridge Only
DS-003 Cartridge Only
SKU: DS-003-C
Brand
DS Audio
$4,395.00
Make an enquiry →

Description

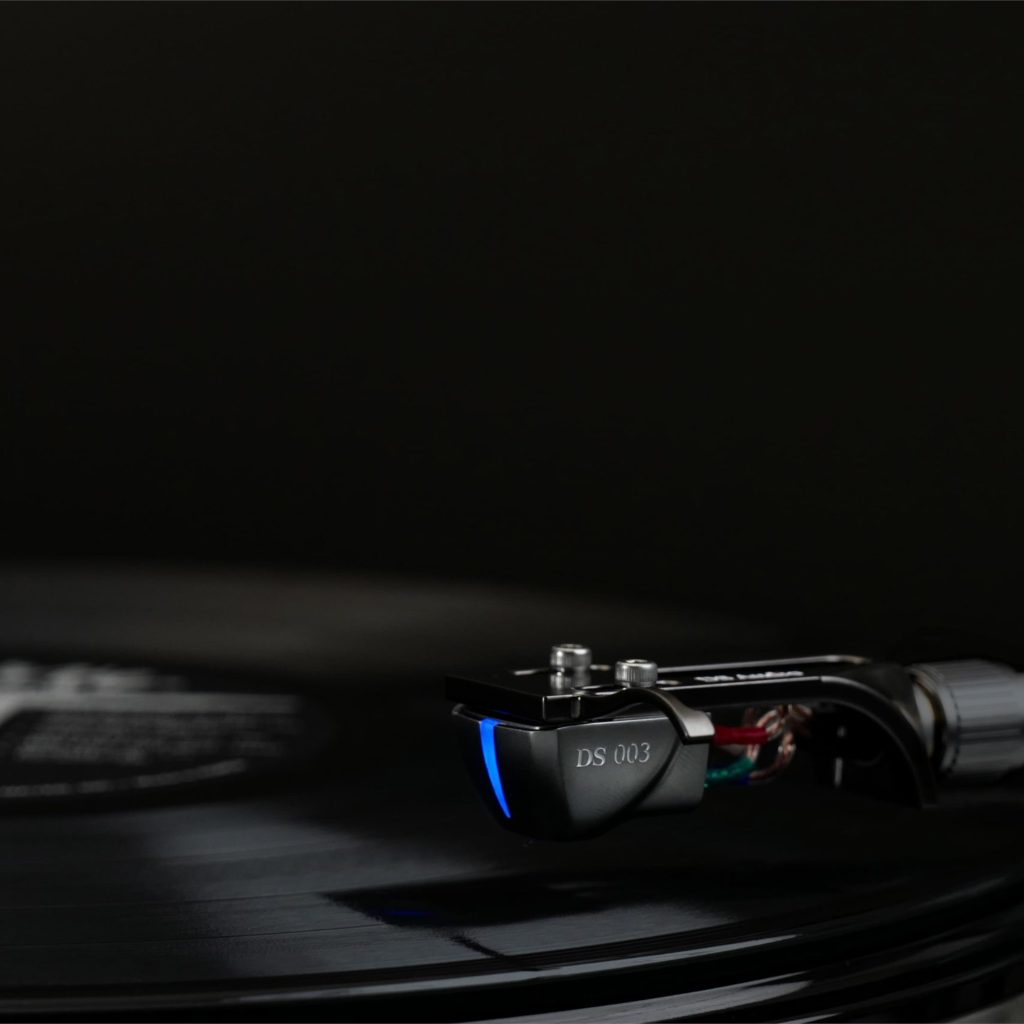

The DS-003 Optical Cartridge combines DS Audio’s advanced optical cartridge technology with a lightweight aluminum cantilever and rigid aluminum body construction. Independent LED and photo-detector arrangements for the left and right channels improve channel separation, increase output level, and reduce noise for greater musical clarity.

The cartridge also incorporates a significantly lighter beryllium shading plate, helping optimize tracking performance while maintaining the precision and transparency expected from DS Audio’s optical playback systems.

Specifications

Signal Output Photo-electric Conversion
Channel Separation 27dB more (1kHz)
Weight 7.7g
Output Signal Level 70mV (1kHz cartridge output)
Cantilever Aluminum
Body Material Aluminum (A5052)
Cantilever Holder Material Stainless
Needle Pressure 2.0g~2.2g (2.1g is recommended)
Stylus Line Contact

Features

  • Independent LED and photo-detector arrangement for left and right channels.
  • Increased cartridge output from 40mV to 70mV.
  • Improved signal-to-noise ratio and lower noise floor.
  • Lightweight shading plate reduced by more than 50%.
  • 99.9% pure beryllium shading plate construction.
  • Aluminum cantilever with Line Contact stylus.
  • Rigid aluminum body design.
  • Enhanced internal wiring to reduce impedance.
