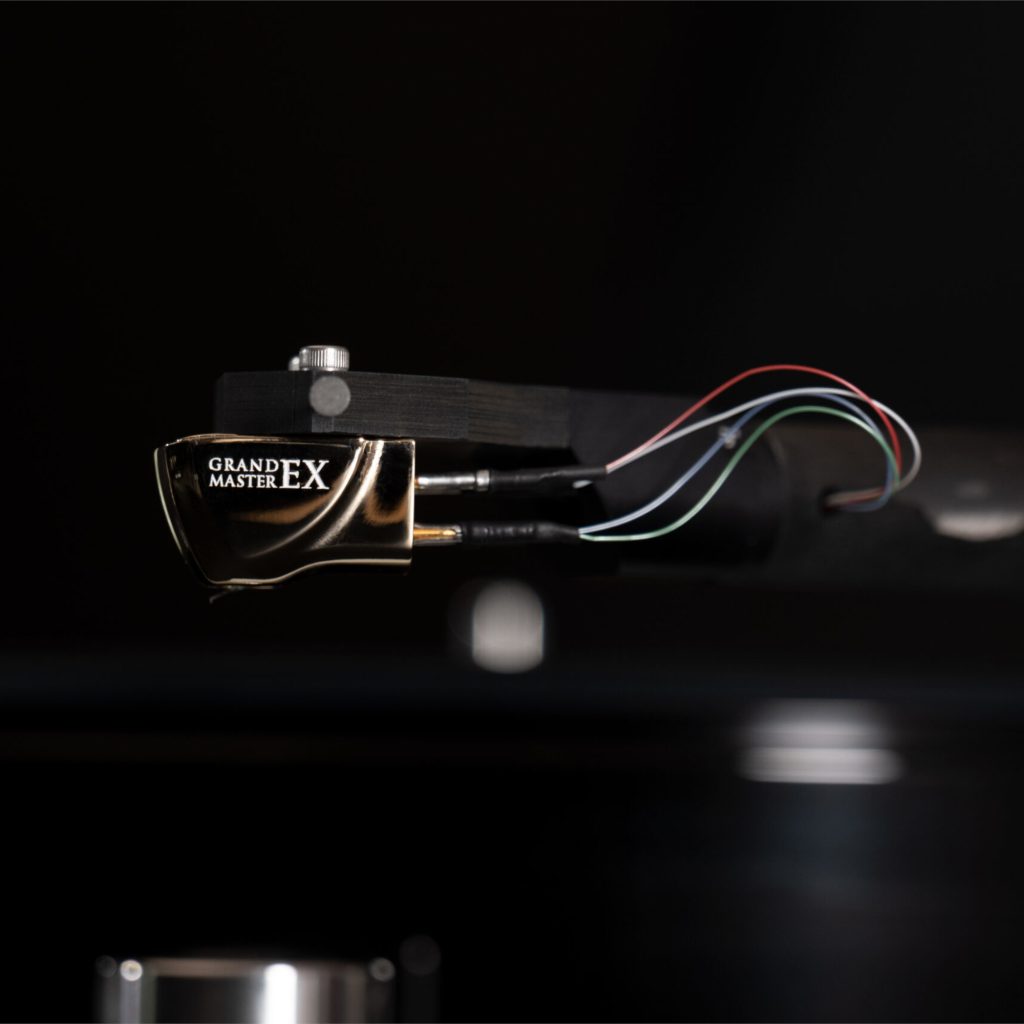

The Grand Master EX Optical Cartridge is a flagship analogue cartridge featuring DS Audio’s photo-electric conversion technology. Unlike conventional cartridge designs, the optical system converts groove information through light-based detection for highly accurate signal reproduction.
At the heart of the cartridge is a unique one-piece diamond cantilever and stylus assembly carved from a single diamond, eliminating the adhesive joint commonly found between cantilever and stylus tip. This construction enables more direct transmission of groove information and contributes to the cartridge’s exceptional sonic precision.
| Signal Output | Photo-electric Conversion |
|---|---|
| Channel Separation | 27 dB (1 kHz) |
| Weight | 7.7 g |
| Output Signal Level | 70 mV or more |
| Cantilever & Needle | One Piece Diamond |
| Body Material | Ultra Duralumin |
| Cantilever Holder Material | Stainless Steel |
| Stylus Profile | Micro Ridge |
| Recommended Tracking Force | 2.1 g |
| Tracking Force Range | 2.0 g to 2.2 g |
