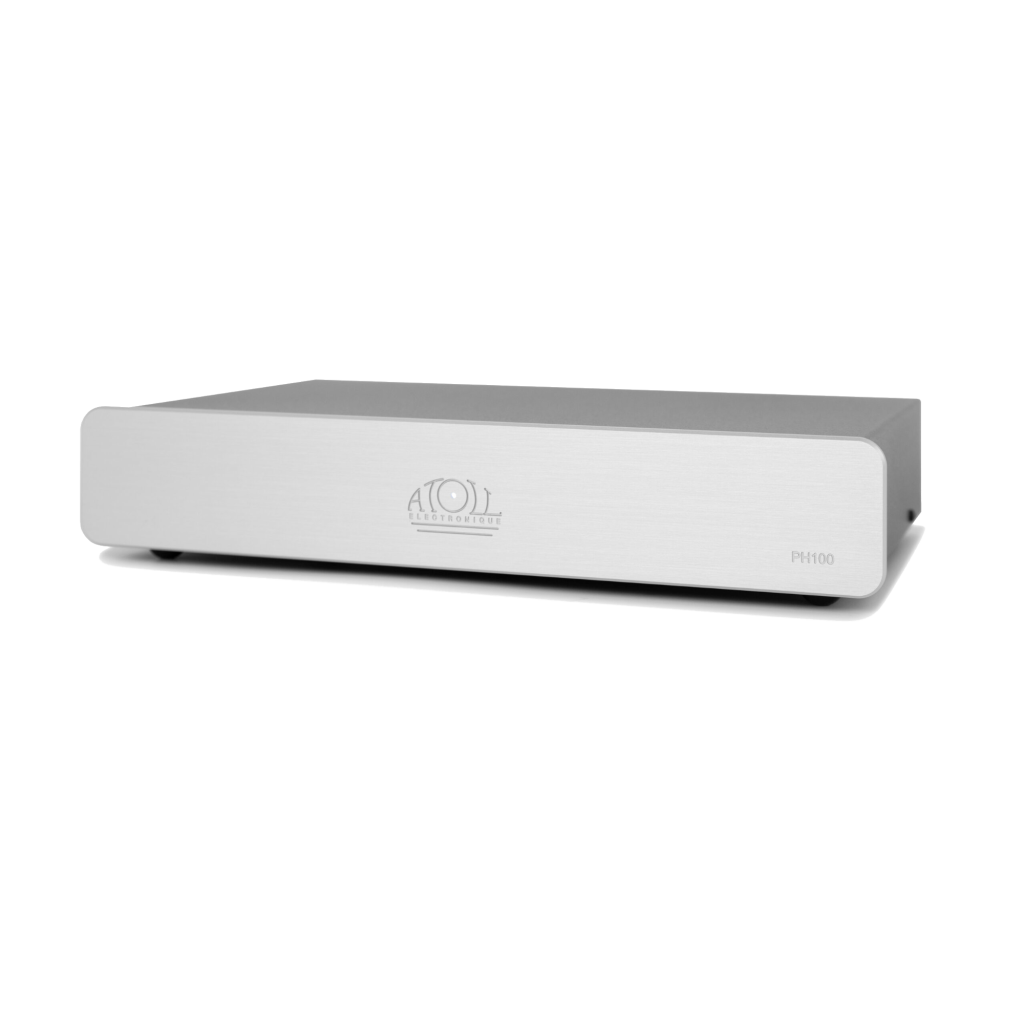

The PH100 phono preamp is an external module with a specific power supply consisting of 2 high-end transformers (one per channel) with very low noise and 4 voltage regulators. The assembly is shielded by a metal box to preserve any interference on the audio stages. It is entirely made of discrete components and does not include any link capacitors. The configurations (MM/MC, input impedance) are directly accessible from the rear of the chassis.
| Power supply | 6,4 VA |
|---|---|
| Total capacitance | 11,280 µF |
| Cell type | MM / MC |
| Input impedance | 47 k or 100 k(*) |
| Input capacitance | 100 pF or nothing() |
| MM gain | 40 dB(*) |
| High-level MC gain | 47 dB(*) |
| Low-level MC gain | 60 dB(*) |
| Signal-to-noise ratio at 1 kHz | 80 dB |
| Crosstalk at 1 kHz | <-85 dB |
| THD | 0.05% |
| Dimensions | 320×210×63 mm |
| Weight | 2 kg |
| (*) Depending on the switch position. |
