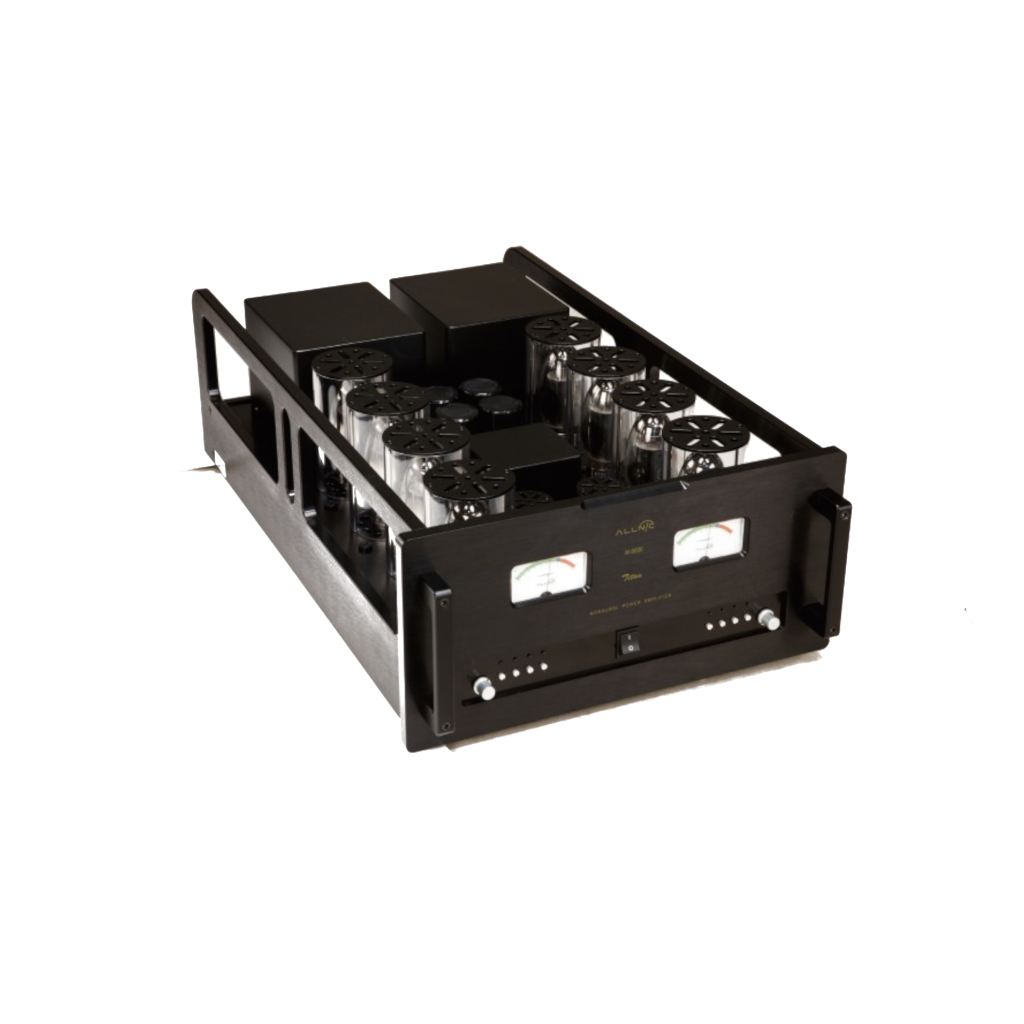

The Allnic M-5000 TITAN is a reference-class vacuum tube power amplifier engineered to combine the refinement of Class A operation with the authority and control required for demanding loudspeaker systems. Designed around eight KT150 output tubes, the amplifier delivers exceptional resolution, dynamics, and low-noise performance while maintaining the musical characteristics associated with premium valve amplification.
A sophisticated hybrid bias system allows the M-5000 TITAN to operate in Pure Class A up to 125 watts before seamlessly transitioning into Class AB operation for higher output demands. This approach enables the amplifier to deliver delicate low-level detail alongside substantial power reserves, making it suitable for a wide range of loudspeaker designs and listening environments.
The amplifier further incorporates Allnic’s proprietary Full Engagement output transformer technology, oversized nickel/FeSi-core transformers, analogue tube monitoring meters, individual tube protection circuitry, and soft-start operation. Together, these features are designed to maximise efficiency, reliability, and long-term performance while preserving signal integrity throughout the amplification process.
| Output Power | 400 W (8 Ω load, at 1 kHz) |
|---|---|
| Class A Output | Up to 125 W |
| Distortion | 0.17% at 1 kHz at 10 W |
| Frequency Response | 20 Hz - 20 kHz (flat) |
| Signal-to-Noise Ratio | -80 dB (CCIR, 1 kHz) |
| Damping Factor | 8 at 8 Ω load at 1 kHz |
| Voltage Gain | +24 dB |
| Input Impedance | 100 kΩ (single-ended, unbalanced) |
| Input Sensitivity | 2.0 V for rated power |
| Power Tube Fuse | 0.5 A, 250 V, 20 mm slow-blow (KT150s) |
| Mains Fuse | 5 A, 250 V, 20 mm slow-blow |
| Power Tubes | KT150 × 8 |
| Second Stage Driver Tubes | E55L × 2 |
| First Stage Driver Tube | 5749 × 1 |
