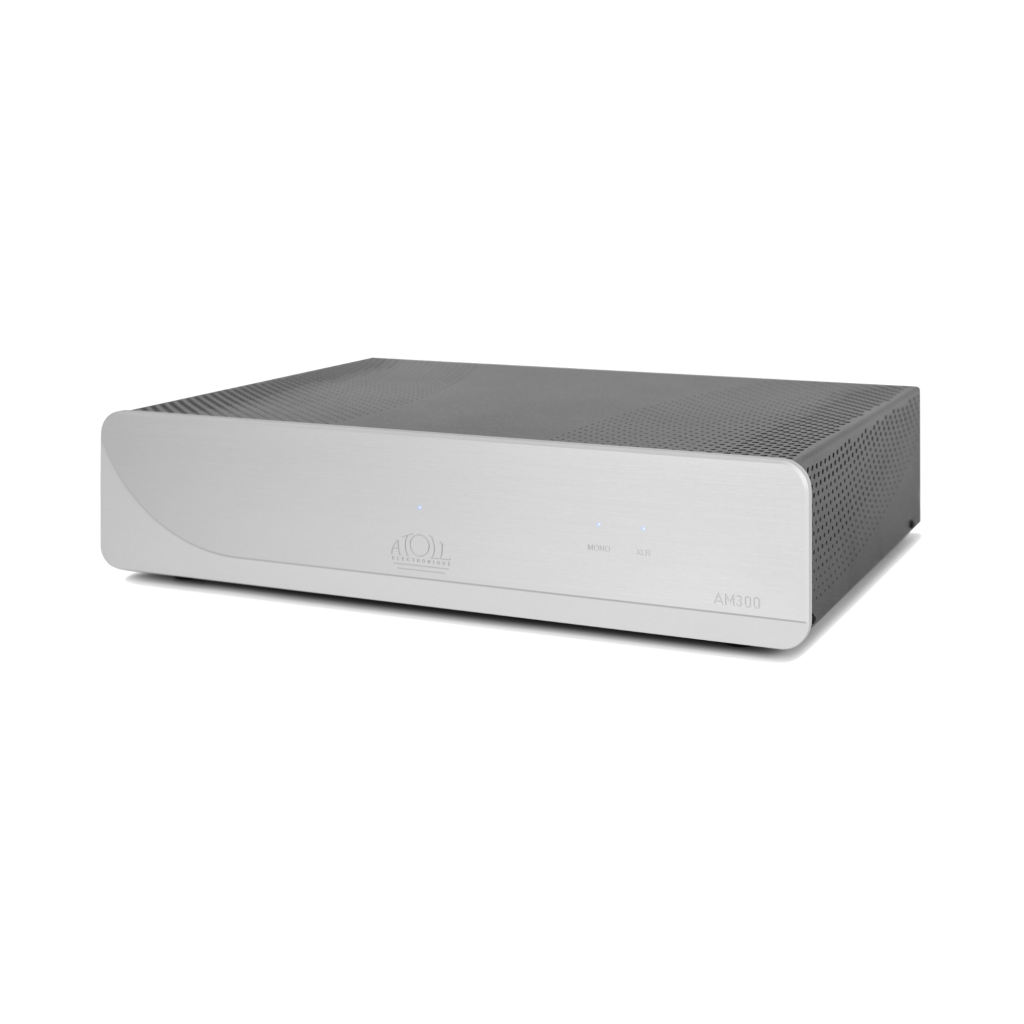

The AM300 EVO power block has been specially designed to meet demanding amplification needs, offering improved audio performance and remarkable thermal protection. It has new RCA connectors. In addition, it can be bridged to a mono block via an external switch and is equipped as standard with a 12V Trigger input (direct ignition in connection with a preamp).
| Power Wrms/channel/8Ω | 150 W |
|---|---|
| Power Wrms/channel/4Ω | 280 W |
| Power in bridged mono mode/8Ω | 500 W |
| Power supply | 2 x 440 VA |
| Total capacitance | 83 600 μF |
| Number of stereo inputs | 1 RCA + 1 XLR |
| Power consumption with switch off | 0 W |
| Power consumption in operation | 26 W – 700 W |
| Input impedance | 220 kΩ |
| Sensitivity | 1,7 V |
| Signal-to-noise ratio | 105 dB |
| Distortion at 1 kHz | 0,005% |
| Bandwidth | 5 Hz – 200 kHz |
| Rise time | 1,5 μs |
| Dimensions | 440 x 351 x 103 mm |
| Weight | 16 kg |
