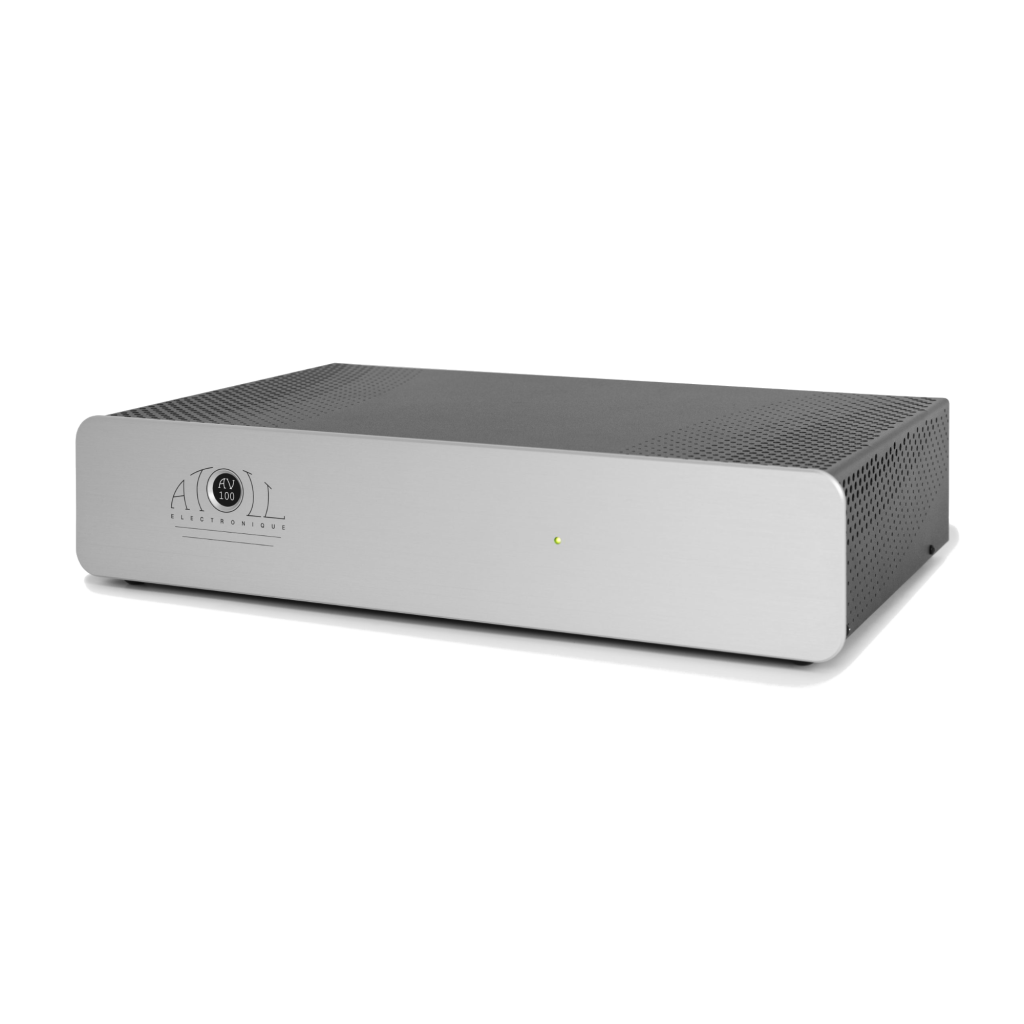

AV100 Home Cinema Power Amplifier
AV100 Home Cinema Power Amplifier
SKU: AV100
Brand
Atoll Electronique
$2,295.00
Options
Colour
Make an enquiry →

Description

The AV100 home cinema power amp is a 3-channel model developing up to 100 watts per channel into 8 ohms. Equipped with high-quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs to amplify the front channels. This musical amp, combining power and finesse, allows the listener to dive into the heart of the action.



Specifications

Power in Wrms/8Ω 100W / channel
Power in Wrms/4Ω 140W / channel
Pulse power 180 W / channel
Power supply 2×340 VA
Total of capacitors 44 210 µF
Number of entries 3
Input Impedance 47 kΩ
Sensitivity 1,77 V
Signal/Noise Ratio 100 dB
Distortion rate at 1 kHz 0,05% / (10 W)
Bandwidth 5Hz – 200 kHz
Rising time 1,3 µs
Dimensions 440×291×95 mm
Weight 11 Kg

Features

  • 4 mm brushed aluminium front
  • 1,5 mm steel frame
  • 3×100 Wrms under 8Ω
  • 2 toroidal transformers of 340 VA each
  • Total of capacitors: 44 210 µF
  • Symmetrical stages with discrete components
  • MOS-FET technology output transistors
  • Optional natural aluminium finish
  • Possibility of integrating a 12V Trigger input as an option

Connectivity

  • 3 Signal inputs (right, centre and left channels)
  • 1 Trigger input (1) (optional)
  • 3 Signal outputs (right, centre and left channels)
  • 1 Right speaker output, 1 Central channel output, 1 Left speaker output
